Note: These screens use 5 pins to connect to a PCB. Please note that most PCB kits are made for 4 pin OLED screens. These screens can be used with PCBs designed for 4 pin OLED screens, but the extra pin will need to be wired directly to the MCU.

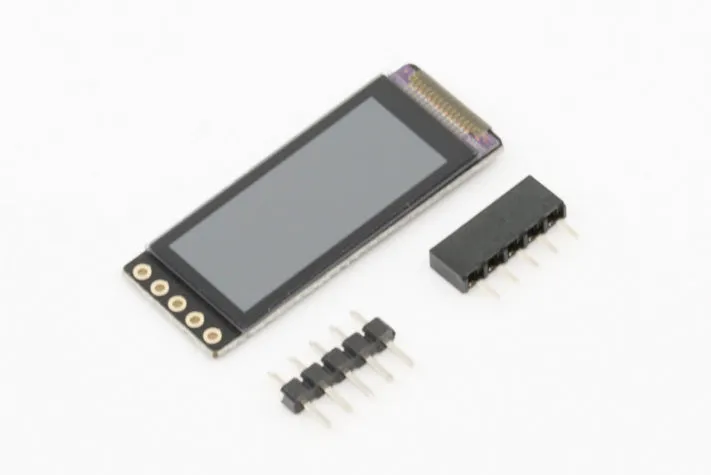

The nice!view is a SSD1306 OLED replacement boasting >1,000x power savings while keeping a 30Hz refresh rate. It has a similar pinout to SSD1306 OLEDs with one extra pin making it easy to add on to existing boards.
Specifications
- 160×68 pixel resolution with a diagonal size of 1.08″
- 36x14x2.9mm dimensions
- 30Hz refresh rate
- <10uA typical power draw
- Conformal coat to reduce the possibility of shorts
- Socket and pins included
- 3-wire SPI protocol
- 3.3V voltage
- Sharp LS011B7DH03 display
